Automatic Bottling Plant:

Automatic Bottling Plant: Specification

Product Type
Automatic Liquid Packaging Machine

Material
Stainless Steel

Application
Chemical, Beverage, Food, Medical

Computerized
No

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
430 Volt (v)

Weight (kg)
600 Kilograms (kg)

Dimension (L*W*H)
15 x 4 x 7 Foot (ft)

Capacity
1200 Pcs/hr

Feature
High Performance

Color
Silver

Automatic Bottling Plant: Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
4 Week

About Automatic Bottling Plant:

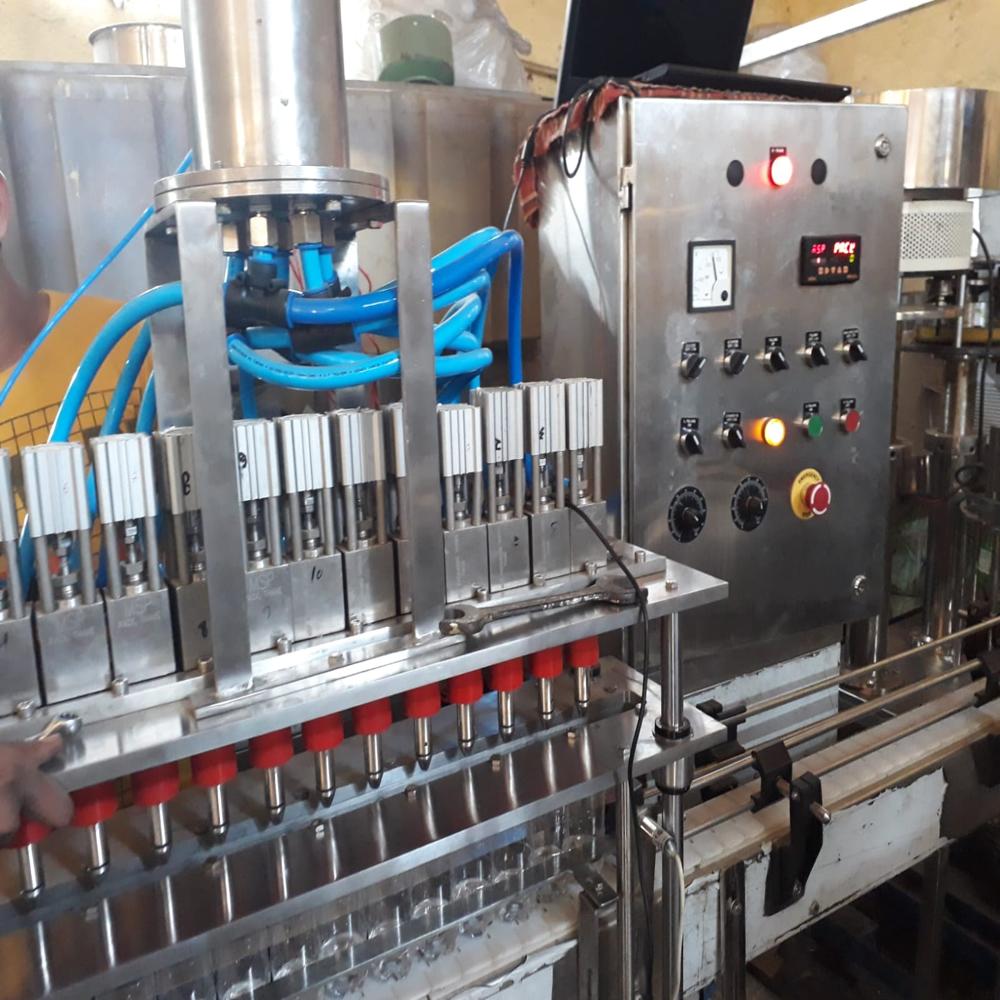

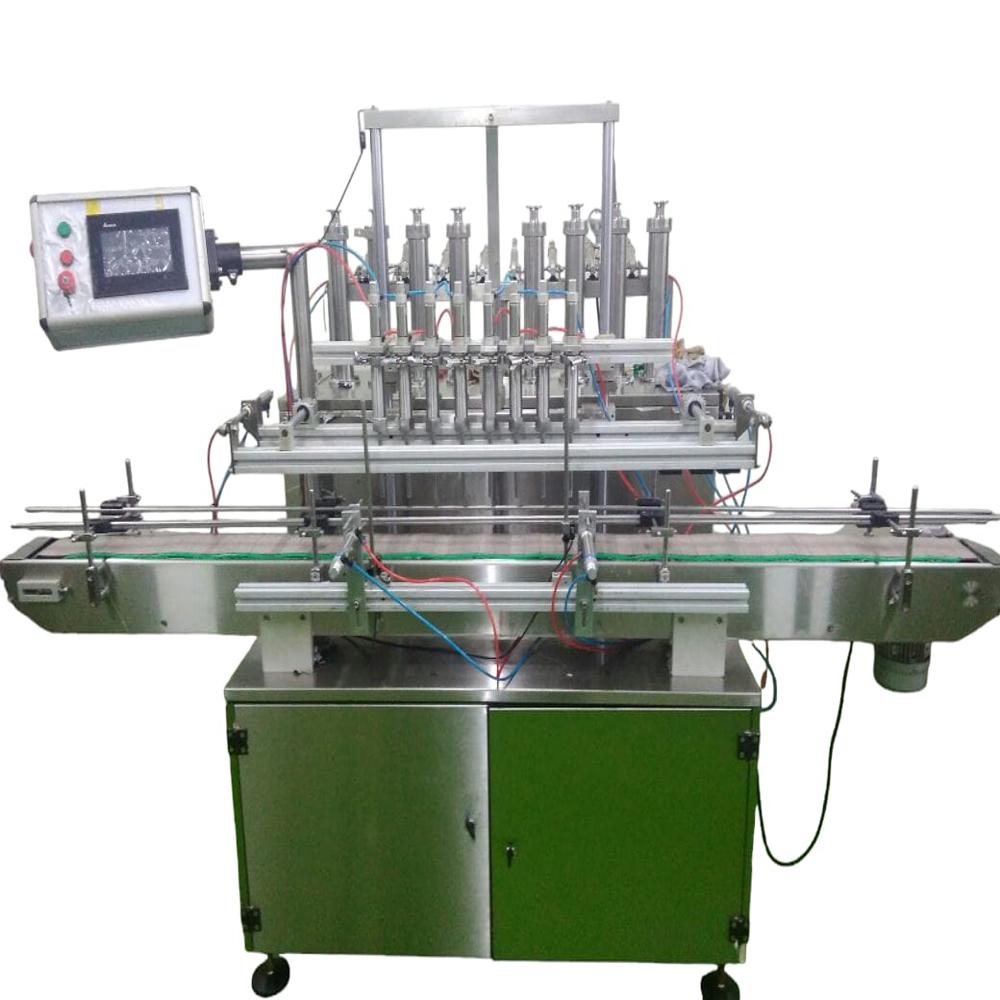

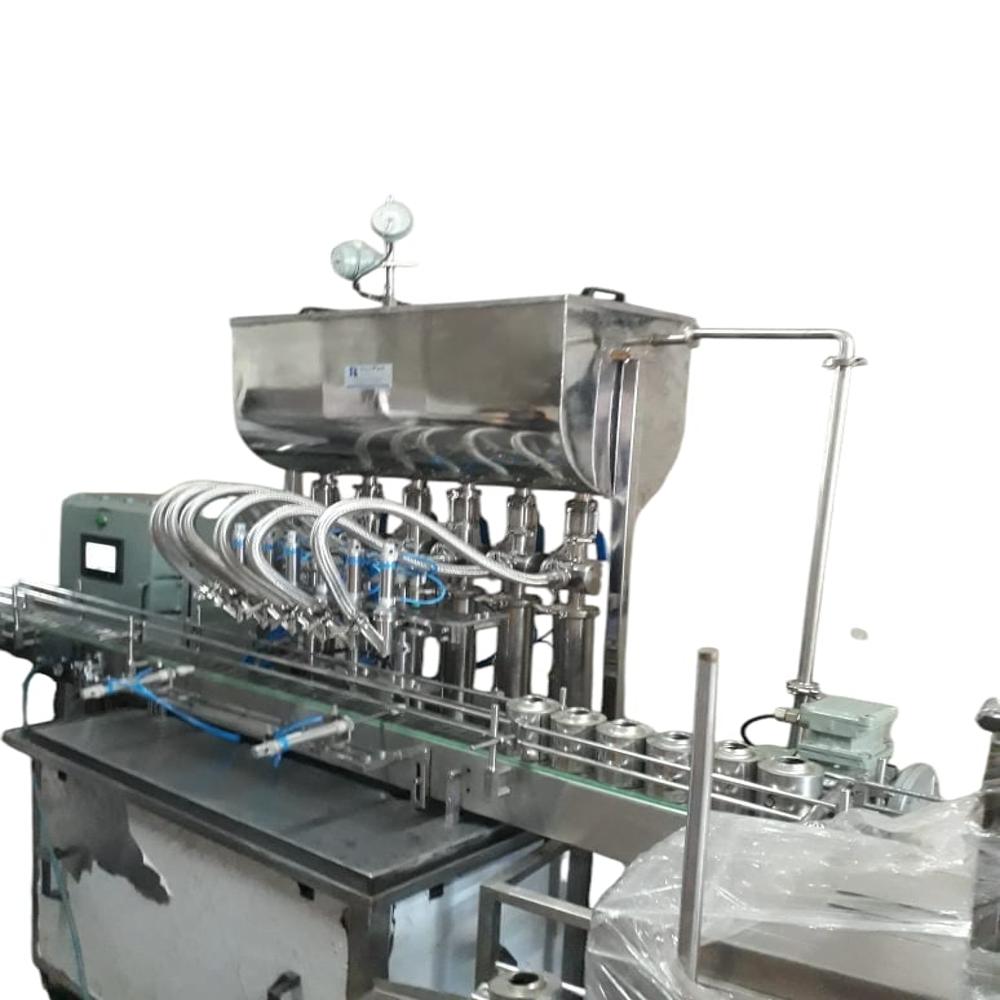

AUTOMATIC LIQUID FILLING MACHINE 4 HEAD FILLING WITH SINGAL HEAD CAPPING MACHINE : - MODEL- ALM-2000 R:-

An Automatic 1-liter bottle filling and capping machine is stainless steel (SS304 make, fill, and seal PET or glass bottles at speeds typically ranging from 16-20 bottles per minute (BPM). These systems feature PLC controls, "No Bottle - No Fill" sensors, and magnetic torque capping heads to ensure hygienic, accurate filling for suger syrup, or beverages.

Key Features and Capabilities

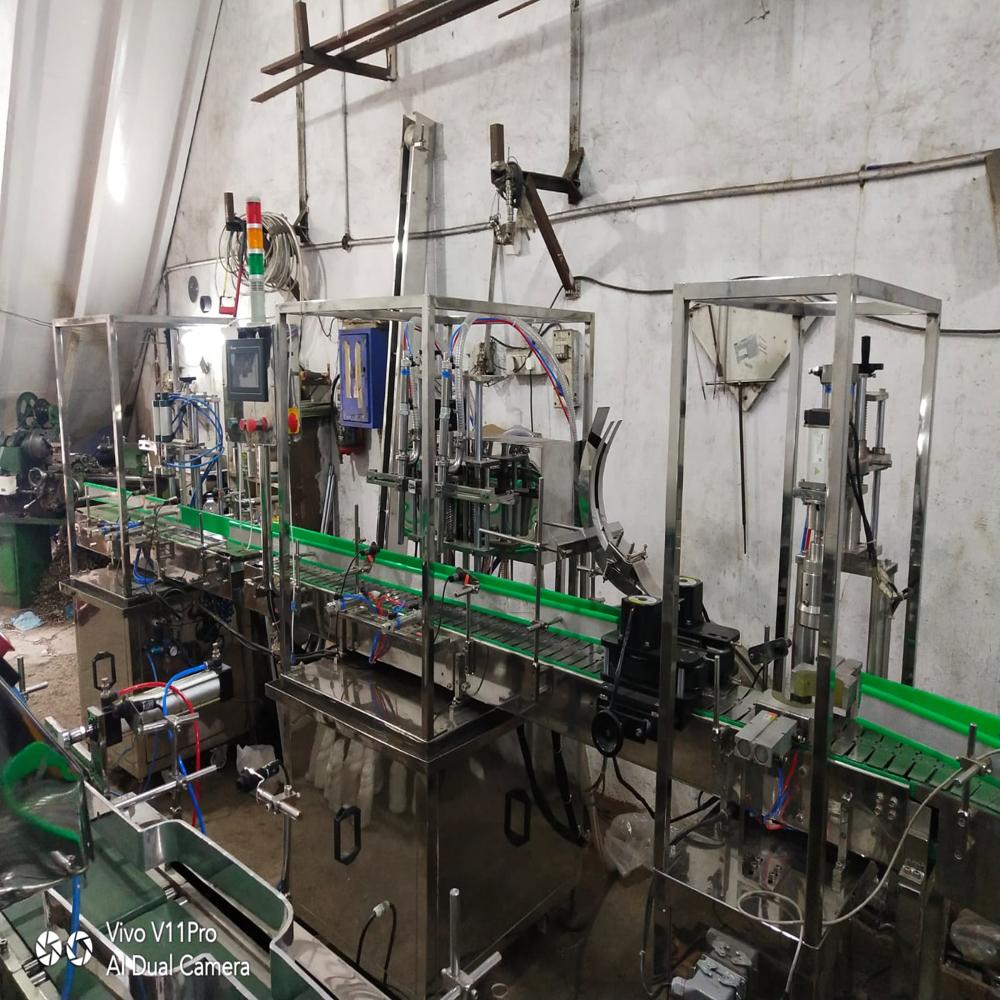

Integrated Process: Combines rinsing, filling, and capping on a single, space-saving platform.
High Accuracy: Utilizes volumetric piston filling or gravity/micro-pressure filling technology.
Hygienic Design: Constructed with Stainless Steel 304, suitable for pharma and food industries.
Versatility: Capable of handling various cap types (screw and bottle shapes (round, flat, oval).
Automation: PLC-based control panel with HMI allows for adjustable speeds via VFD.
Safety & Efficiency: Features like "No Bottle - No Fill" and "No Bottle - No Cap" prevent wastage.

Typical Technical Specifications (1 Liter Standard)

Filling Capacity: 100 ml to 1000 ml.
Production Speed: 900-1200 Bottles Per Hour (BPH).
Filling Accuracy: 1-2%.
Capping Type: Screw capping, or press fit capping.
Power Requirement: 3 Phase, 380V-440V, 4-6 kW.
Air Pressure: 4-6 kg

Components

Infeed/Outfeed Conveyor: Slat belt conveyor system.

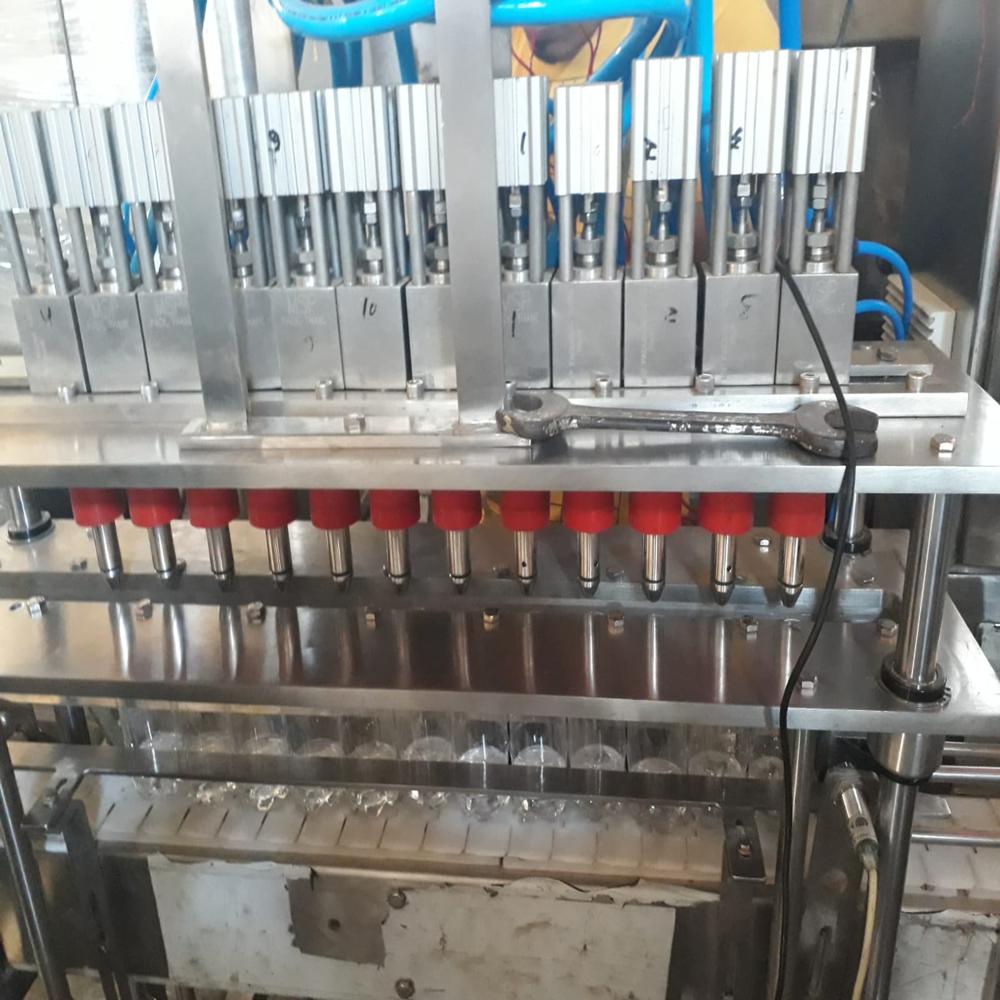

Filling Heads: 4 head (depending on BPH requirement).
Capping Unit: Single head rotary Dick screw capping machine .
Control System: PLC with human-machine interface (HMI).

These machines are ideal for filling liquid in bottles ranging from 500 ml to 2000 ml

"SPI" TURN TABLE: GMP
The unit is strong base with all S.S.cover with mirror polish. The main drive plate will be complete stainless steel 5mm thickness. Turntable is driven
by 1 hp .A.C.Motor with A.C.Veriator. The unit is complete G.M.P.Model.

Size :36"Dia. ONE
