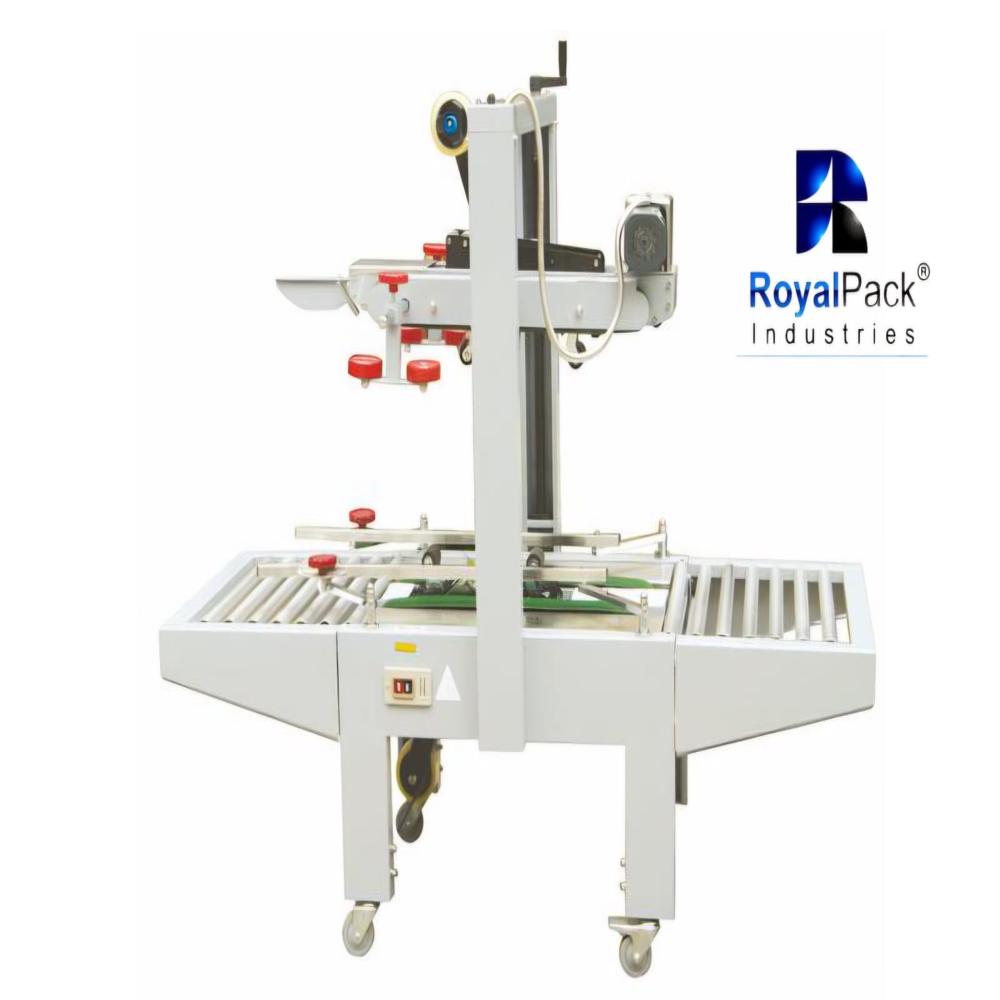

Automatic Carton Sealing Machine

Product Description

Backed by our 12 years of industry experience, we are providing Automatic Carton Sealing Machine to our prestigious patrons. The offered machine is manufactured by our experienced professionals with the use of supreme grade components and modish techniques at our in-house production unit. Widely used for sealing cartons of different capacities, this machine is able to seal at high speed in an automatic manner. Apart from this, the Automatic Carton Sealing Machine offered by us is available with us at rock bottom rates.

Features:

• Rugged design
• Unmatched performance
• Maintenance free
• High operational fluency

Automatic Carton Sealing Machine ACTM-600 H

• It helps in sealing various sizes of cartons without being adjusted, it will be fitted mechanically.
• According to the various materials of packaging cartons, the fastening pressure can be altered
• The altering strength of the movement arms in 2 side can be synchronized in accordance to the weight of carton
• 2 side movement arms regulate the objects packed up to the most excellent position automatic
• The movement frame is drove by double air jar elegant and smoothly, by means of long time
• Large power convey motor, the goods of 25 Kg can be conveyed progressively
• Air and Electricity are combined perfectly, for suitable and uncomplicated operations
• The fine structure and the pleasant color bring pleasure to both the eyes and the mind. This machine picks up the pneumatic technique for packaging robotically. It conquers some disadvantages when picks manual or semi-auto ones, such as low speed and the unbalanced quality. This machine will not harm the surface of packaged objects. The air-jar with every action point adopts Air TAC's products, the competence is very steady.

Parameter:

•  Model:ACTM-600 H
• Power supply:220V/50-60HZ  1phase
• Max.packing dimension: L x 500 W x 500 H mm
• Min.packing dimension:150 L x 180 W x 100 H mm
• Air pressure of working:5Kgs/cm2
• Loading weight:5Kgs
• Machine size:1170 L x 790 W x 1200 H mm
• Machine weight:125Kgs
