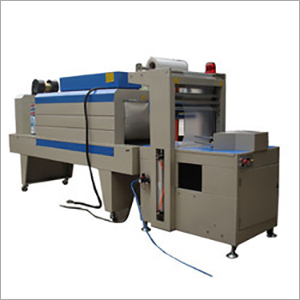

Shrink Wrapping Machine

Shrink Wrapping Machine Trade Information

Minimum Order Quantity
1 Number

Supply Ability
100 Per Month

Delivery Time
10 Days

About Shrink Wrapping Machine

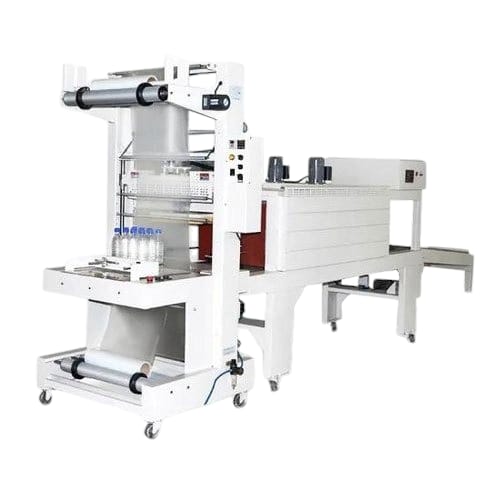

The Automatic Box Web Sealer and Shrink Wrapping Machine (often referred to as a sleeve wrapper) is an industrial system designed to wrap individual boxes or bundled items in plastic film, seal them, and pass them through a heat tunnel to create a tight, professional finish. These machines typically use two rolls of film (upper and lower) to form a "web" that encapsulates the product.

Technical Specifications

Feature	Typical Specification
Production Capacity	25 to 80 packs per minute
Power Supply	3 Phase, 440V (Industrial Standard)
Power Consumption	10 kW to 18 kW
Max Packing Size	Up to 1800 x 650 x 450 mm (Model dependent)
Air Pressure	6 to 8 Bar (Required for pneumatic sealing)
Sealing Mechanism	Pneumatic hot bar or impulse sealing
Control System	PLC with HMI Touchscreen interface
Material Construction	MS Powder Coated or SS304/SS316 Stainless Steel
Machine Weight	Approx. 500 kg to 1000 kg

Key Features

Integrated Web Sealer & Tunnel: Combines the film sealing unit and the shrink tunnel into one continuous motion line.

Automatic Film Unwinding: Uses two film dispensers (upper and lower) to automatically feed LDPE or POF film around the product.

Adjustable Conveyors: Features variable speed roller, mesh, or Teflon belt conveyors to match production flow and side conveyor for box auto feeding in web sealer

Safety Systems: Includes emergency stops, interlocks, and thermal cut-offs to protect operators.

Cooling System: A forced air cooling system at the tunnel exit quickly stabilizes the package shape
