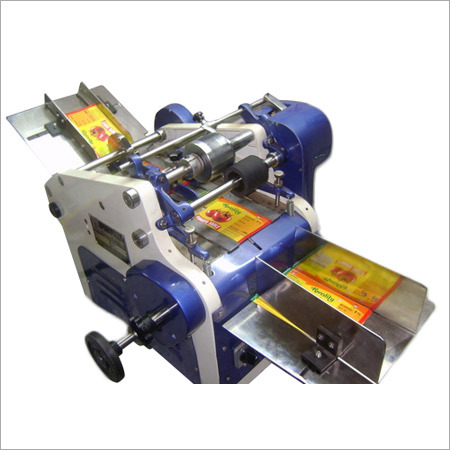

High Speed Stacking Coder Labels Machine

Next > >

<< Previous

Send Inquiry

Product Code : 06

Product Description

We are one of the notable organizations, betrothed in offering High Speed Stacking Coder Labels Machine. With the implementation of innovative techniques, this machine is manufactured using supreme grade components under the direction of our experts. This machine is widely used for printing specific code on large qualities of cartons or labels at high speed. Moreover, this High Speed Stacking Coder Labels Machine can be purchased from us at rock bottom rates.

Features:

Hassle-free performance
Robust construction
Longer service life
High operational fluency

Item Code: SLC-300H

These High Speed Lable and Carton coder Machine are ideal for Automatic High Speed Coding on large quantities of labels. It delivers high quality multi-line printing at production speeds of 250 impressions / minute.

The High Speed Lable and Carton coder Machine are stacked on the slanting tray (Dispenser) for feeding, automatically picked up by the pick-up rubber friction insert, fed to the printing roller one by one via guide track and timing chain & stacked back in the collection tray automatically at very high speeds. High Speed Lable and Carton coder Machine is similar to rotary letterpress.

The oscillating roller disperses an even thickness of ink film on the inking roller and the inking roller transfers the ink to the stereos & finally the image is transferred to the substrate. This cycle is continuously running at high speed with clear & sharp impressions. The High Speed Lable and Carton coder Machine system is totally mechanically synchronized so that the printing is done exactly at the same location automatically.

Specification:

Coder Model	SLC-300 H High Speed Lable and Carton coder Machine
LABEL SIZE	205 mm x 155 mm Max / 50 mm x 20 mm Min
PRINTING SPEED	125/180/250 Carton per minute
MOTOR POWER	0.25 HP / 1440 RPM 414 V 3 Phase
USE OF LETTERS	Rubber Stereos & Metal Stereos
MACHINE DIMENSIONS	760 mm (30) Length,500 mm (22.6) Width, 570 mm (22.4ÃâÃ) Height
NET WEIGHT	85 kg. Approx
GROSS WEIGHT	145 Kg. Approx
