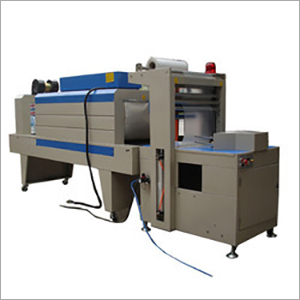

Automatic Sleeve Wrapper

About Automatic Sleeve Wrapper

During past 13 years, our organization has gained a commendable position in market by providing Automatic Sleeve Wrapper. This wrapper is widely used for wrapping water bottles, jars, ketchup bottles, etc.  With due perfection, the offered wrapper is manufactured by our diligent professionals with the use of excellent quality components at our advanced manufacturing set-up. Moreover, we provide this Automatic Sleeve Wrapper at marginal prices to our clients.

Features:

Further Details:

It has Up and down magnetic switch control scheme to put a stop to the fault and inaccuracy of sealing and guard the operator meanwhile. The Schneider"  programmable logic controller (PLC) comes with steady and secure performance. The "Schneider" AC contractor, has an intellectual temperature control. It comes with huge power conveyor motor, steep less speed regulating device which can make sure smooth feeding. The up and down of large power fan system makes sure the outstanding effect of reduction in one time. The Super cooling system helps to make sure the ideal shape of products rapidly after shrinking.

Semi-automatic Sleeve Wrapper (Pneumatic)

It is appropriate for covering of such products as pop-top, mineral water, bottles, drinks both with and without the base tray. It is working with PE shrink tunnel to set the goods flawlessly. The whole producing process agree to the Germany sophisticated techniques

Parameter:

Specifications:

1) Model: SPS-20- H (sleeve wrapper)
2) Voltage: 220V , 50 - 60Hz
3) Power: 3kW
4) Packing speed: 0 - 10pcs/minute
5) Air pressure of working: 4 - 6kg/cm
6) Width/thickness of the film: max. 590mm/0.03 - 0.25mm
7) Max. packing dimensions: 500(L) x 300(W) x 400(H)mm
8) Min. packing dimensions: 250(L) x 50(W) x 100(H)mm
9) Machine size: 1,060 x 1,600 x 1,930mm
10) Conveyer driver size: 1,700(L) x 410(W) x 400(H)mm
11) Machine weight: 370kg
